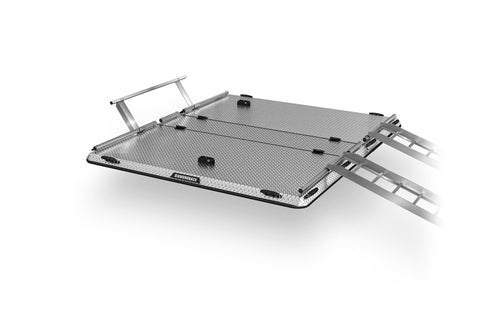

With the DIamondBack ATV Carrier you don’t have to worry about speed limit restrictions, increased tolls, parking constraints and difficulty getting to off-road trailheads. Say goodbye to the added expense of buying a trailer and keeping it registered, maintained, and stored.
Forget about having to make those hard decisions on what to take. Whether that be more ATVs, a boat, or a camper now you can haul it all with one truck.
Peace of mind is knowing your gear is safe when you’re out riding or away from your truck while traveling to ATV trails.
|Hauling Capacity||1,600 lbs.|
|Dimensions||Cover length: 80.75"
Cover width at cab: 70"
Cover width at tail: 68"
Cab panel opening size: 63.5" × 29.125"
Tail panel opening size: 62" × 29.125"
|Construction||.100” 3003 alloy aluminum grade
7 structural studs
Neoprene compression gasket
Stainless steel hinges and external hardware
3/8" steel lock rods
Die-cast zinc, keyed lock handles
5356 alloy TIG welds
|In the Box||DiamondBack HD
ATV Ramps (2)
Adapter Bars (6)
|Installation Time||Approximately 2 hours|
|Removal Time||10 min|
